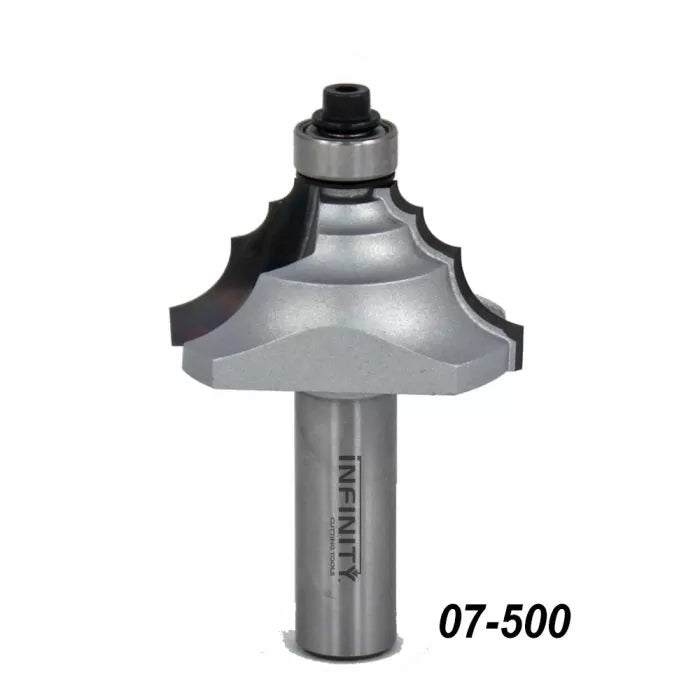

Infinity Tools 1/2" Shank Multi-Radius Router Bit w/ 3-Pc. Bearing Kit
Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.
Multiple Radii + Multiple Bearings Give You Endless Profile Possibilities!
This unique Multi-Radius router bit gives you the ability to rout three popular radii without changing bits. By using your router table and fence you can choose which radius you use or you can cut with the entire profile to create custom moldings for table tops, cabinetry or any edge treatment.

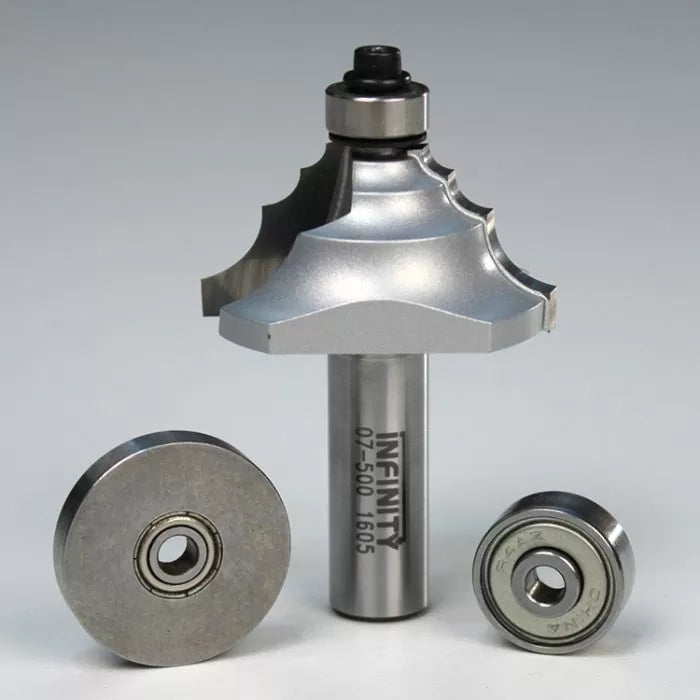

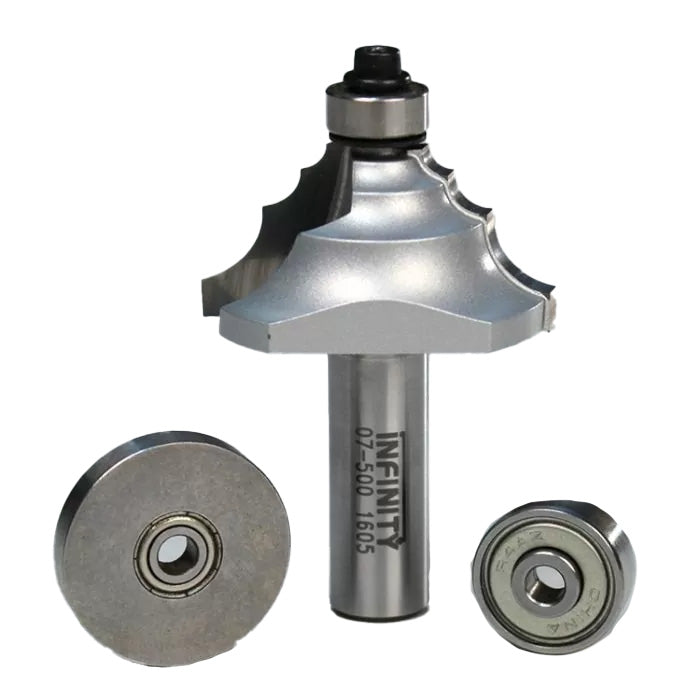

Includes three 3/16" I.D. bearings for creating a variety of profiles: Outside diameter of the bearings is 3/8", 3/4" & 1-1/8". See photos and video for details.

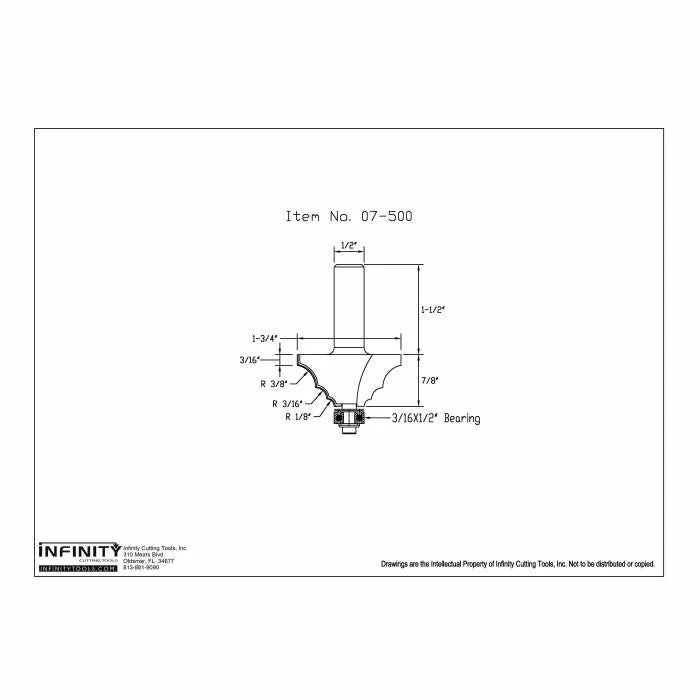

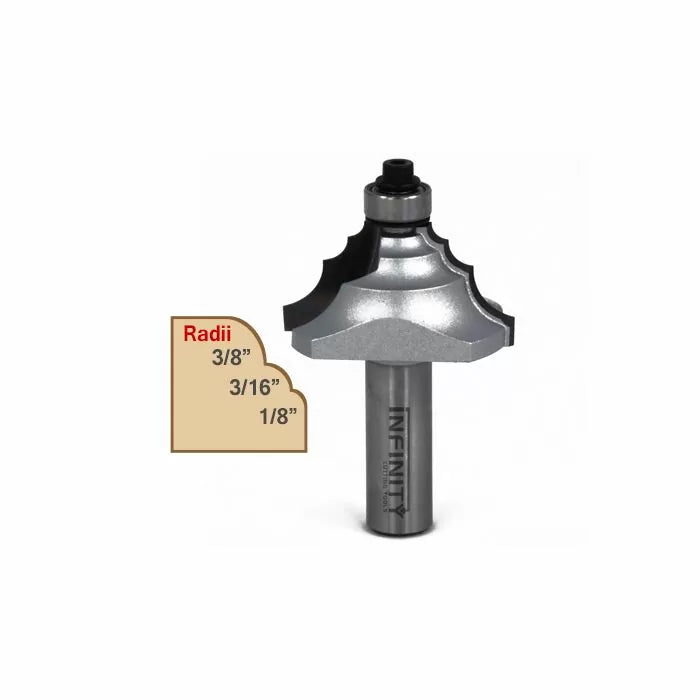

The radii of each step on this bit are:
- 3/8"
- 3/16"
- 1/8"
One of the most common tasks for a router in my workshop is for rounding over the edges of a workpiece. I don't like razor-sharp edges on my projects, especially where they're likely to be touched, rubbed, and subject to wear. More importantly, adding a rounded edge can also play into the overall look and design of the piece, as well.

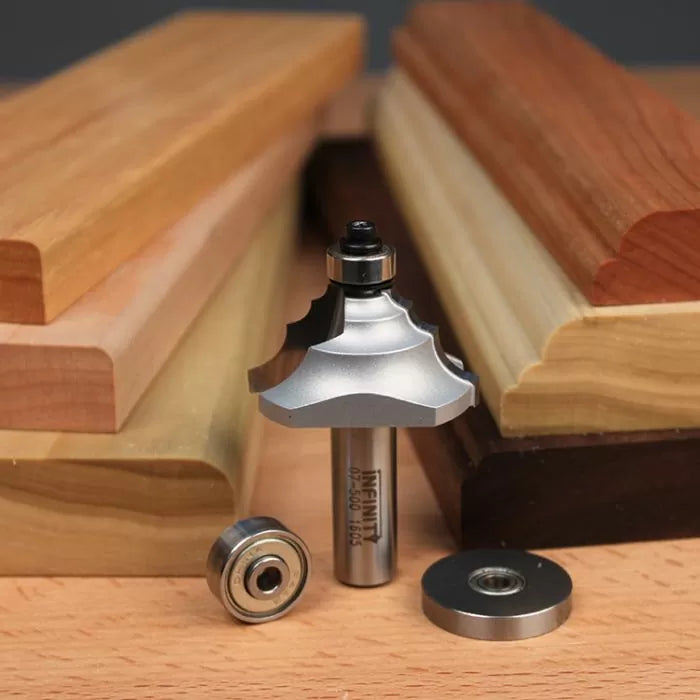

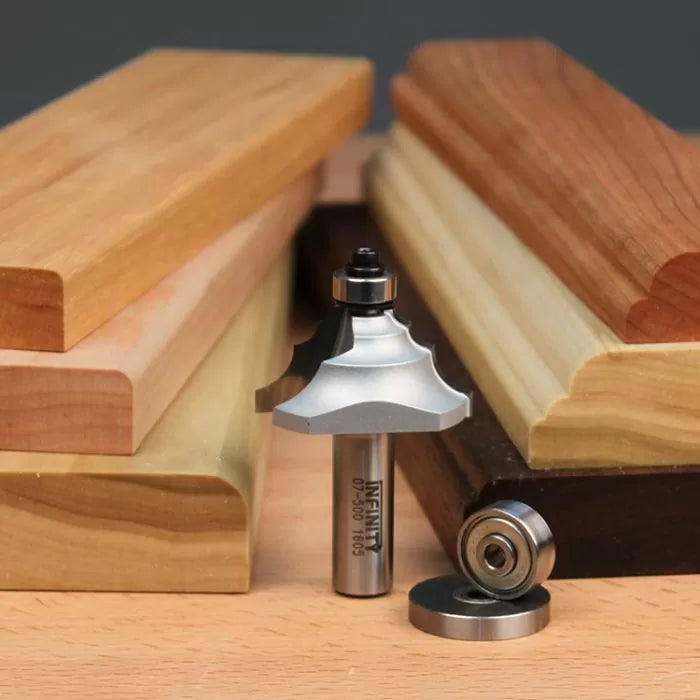

Infinity Cutting Tools makes a multi-radius router bit that incorporates three different radii on the same bit: 1/8", 3/16", and 3/8"-radius. So it's a perfect bit for routing roundovers, but its profile lends itself to creating other unique profiles, as shown in the photo above. By raising the bit in your router table, you can create profiles with a double or triple radius. These profiles are reminiscent of the Art Deco style of the early 1900s.

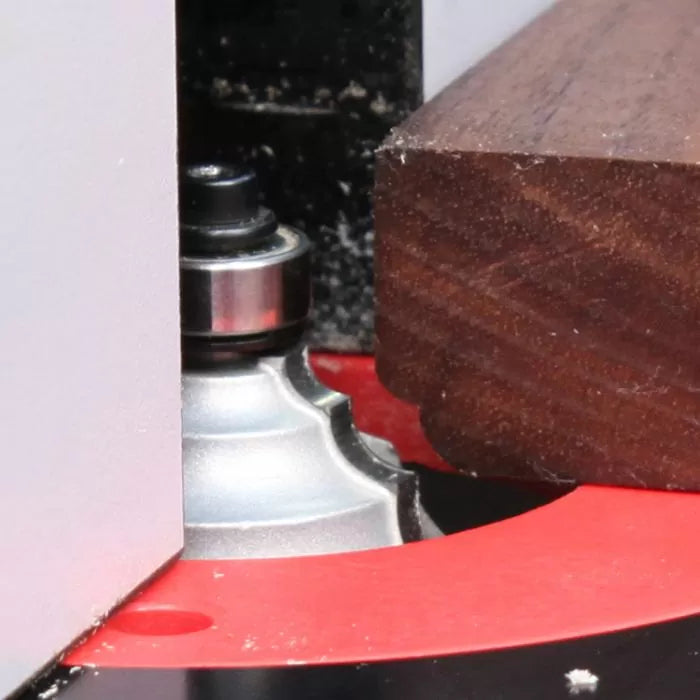

The photos below show you just a few examples of the profiles that can be generated with this bit. The included 3-piece bearing kit makes this multi-radius router bit a true multipurpose bit. Be sure to check out the video below.

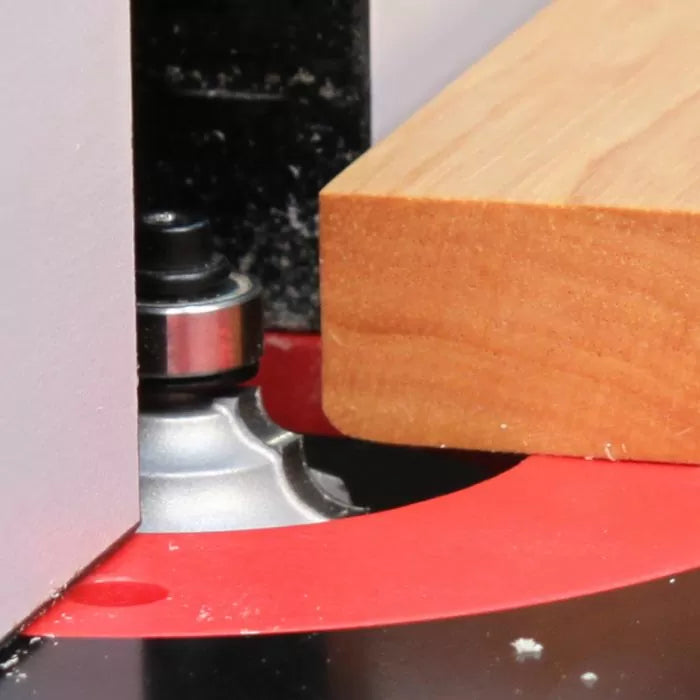

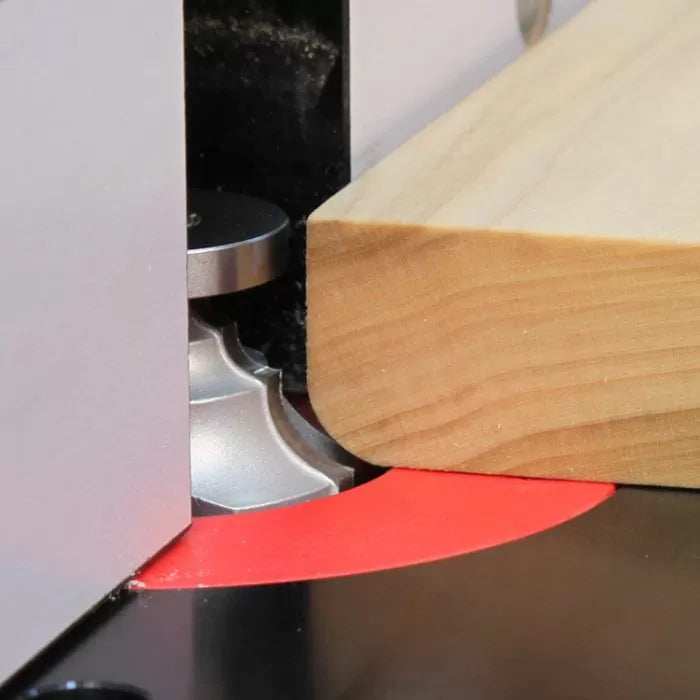

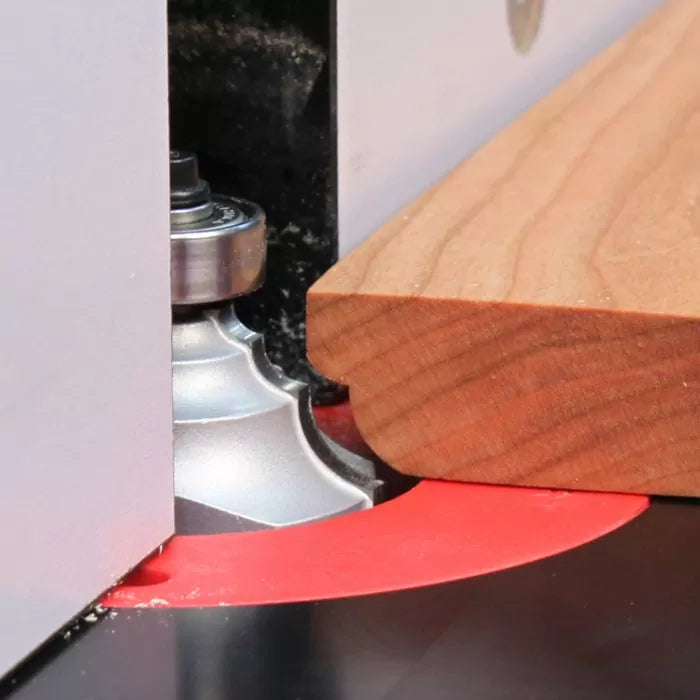

Routing a 3/8"-radius roundover using the 1-1/8" O.D. bearing.

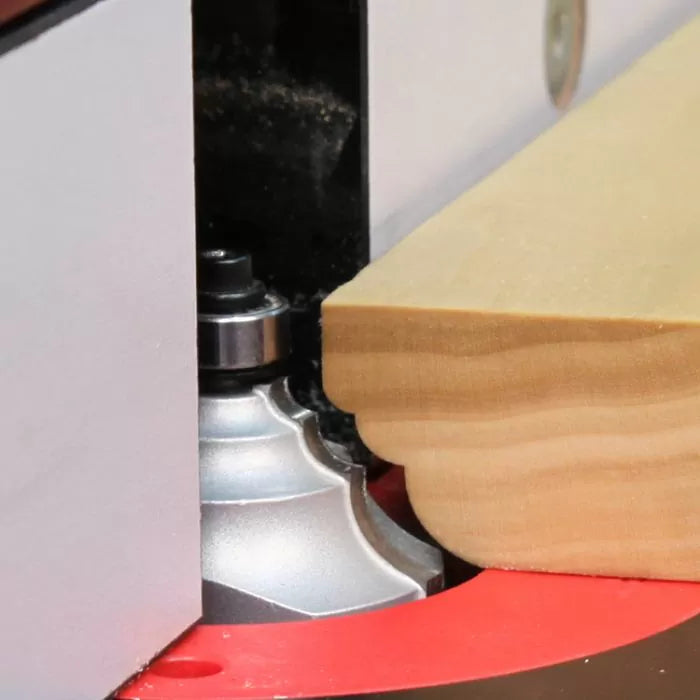

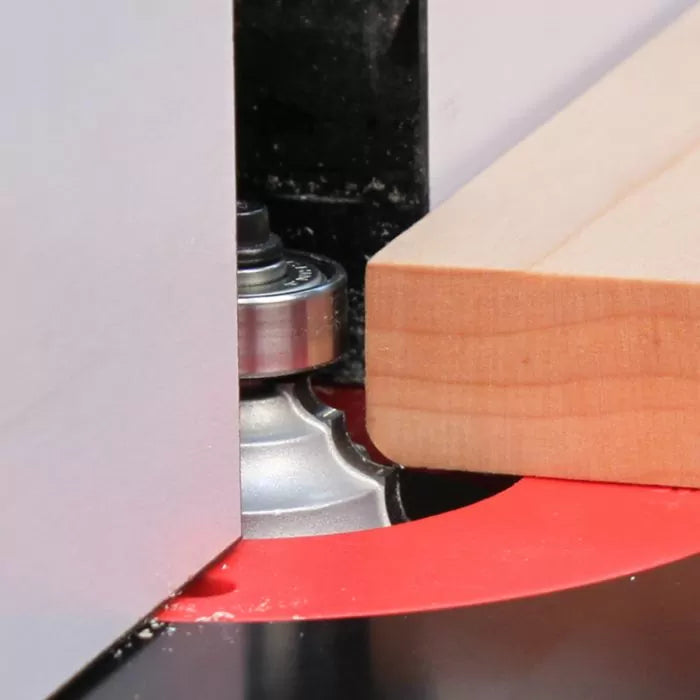

Creating a double-radius profile using the 3/4" O.D. bearing.
The Infinity Cutting Tools Difference
